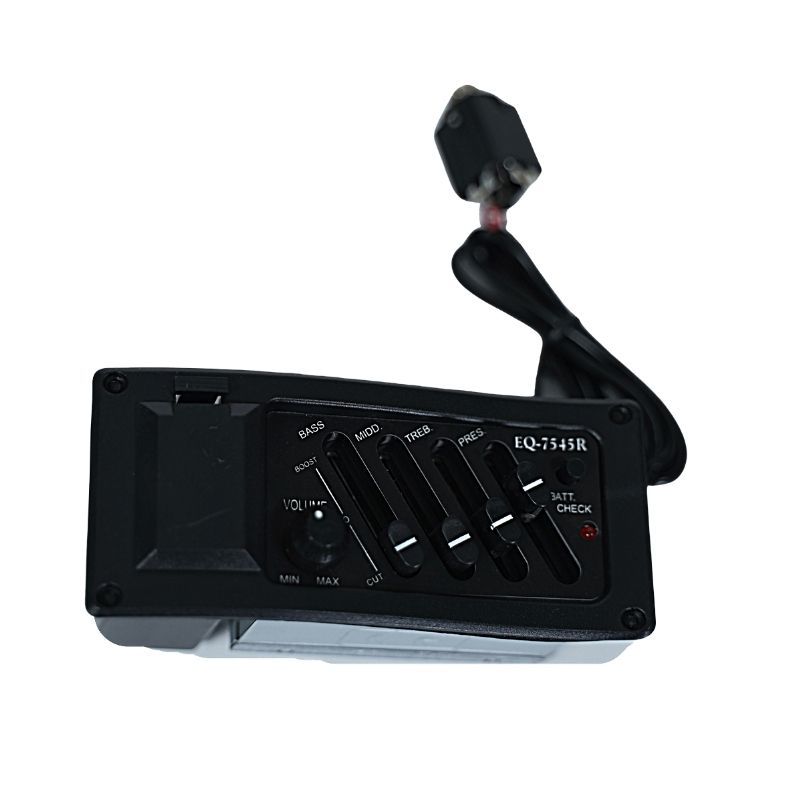

The EQ-7545R is a popular, budget-friendly 4-band preamp equalizer system with a piezo pickup, designed for easy installation in acoustic and classical guitars, allowing players to amplify and finely adjust their instrument's sound (Bass, Middle, Treble, Presence) with a master volume, often used for live performance and recording. It runs on a 9V battery, includes a low battery indicator, and comes as a complete kit with the pickup, preamp unit, battery box, and mounting hardware.

• 4-Band Equalization: Controls for Bass (±12dB @ 600Hz), Middle (±12dB @ 600Hz), Treble (±12dB @ 2.2KHz), and Presence (±12dB @ 8KHz).
• Volume Control: Master volume knob for overall loudness.
• Piezo Pickup: A rod-style ceramic piezo transducer that fits under the guitar's saddle.
• Easy Installation: Pre-wired and designed to fit into a cutout in the guitar's body.
• Power: Uses a standard 9V battery (not included).
• Low Battery Indicator: Alerts you when the battery is running low.
• Output: Features a standard 1/4" (6.35mm) jack with an automatic "off" circuit when
